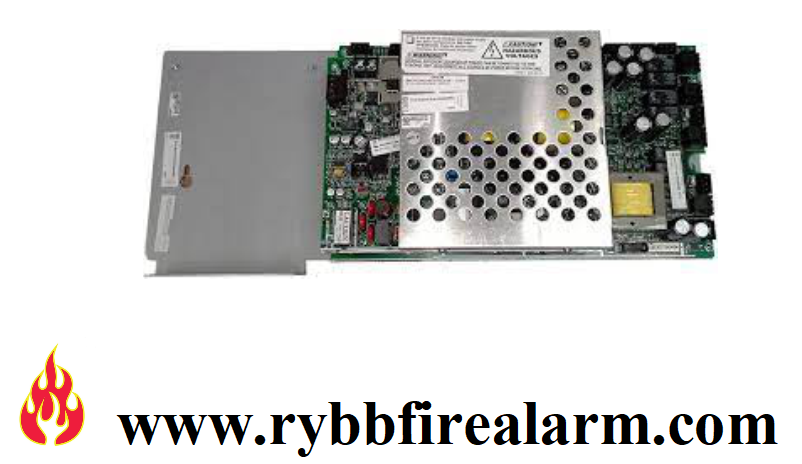

Notifier DAA2-5070 Digital Audio Amplifiers (New)

The Notifier DAA2-5070 Series amplifiers are multi-featured amplifiers with digital audio functionality. Also, each Notifier DAA2-5070 is capable of accessing and processing one of up to eight audio channels on the DVC audio loop, amplifying the signal, and distributing it via four Class B, two Class A outputs, or four Class A outputs in DAA2-5070 amplifiers with a DCADC Class A expander.  Besides, a DAA2-50 or DAA2-75 series amplifier is capable of mounting an optional BDA Digital amplifier, which can be used to provide one-to-one amplifier backup or to support two-channel operation, or increased output wattage to 100W (100W option applies to DAA2-50 series only, other rules apply).

In general, the Notifier DAA2-5070 has two-wire digital audio ports to connect to wire DAL (digital audio loop) segments. In Addition, DAA2-5070 amplifiers can store backup alarms and trouble messages, and provide an adjustable background music input. Furthermore, the Notifier DAA2-5070 arrives from the factory already installed on its chassis. Also, One or two fiber option modules will plug directly onto a DAA2 for simple installation. A BDA backup amplifier mounts directly onto a DAA2.

Features / Specifications

• Optional BDA amplifiers support alternative configurations
• 50 W total output power at 25 VRMS
• Backup amplifier – supports one-to-one backup
• Primary amplifier – supports two-channel operation
• Primary amplifier – increase power up to 100W, one- or two-channel operation.
• Supports one-to-many amplifier backup applications using the same model
• Remote microphone paging option with RM-1
• Audio output activation via network control-by-event equations resident within the DVC
• Programmable through VeriFire® Tools

Download the Specification sheet in .pdf format
