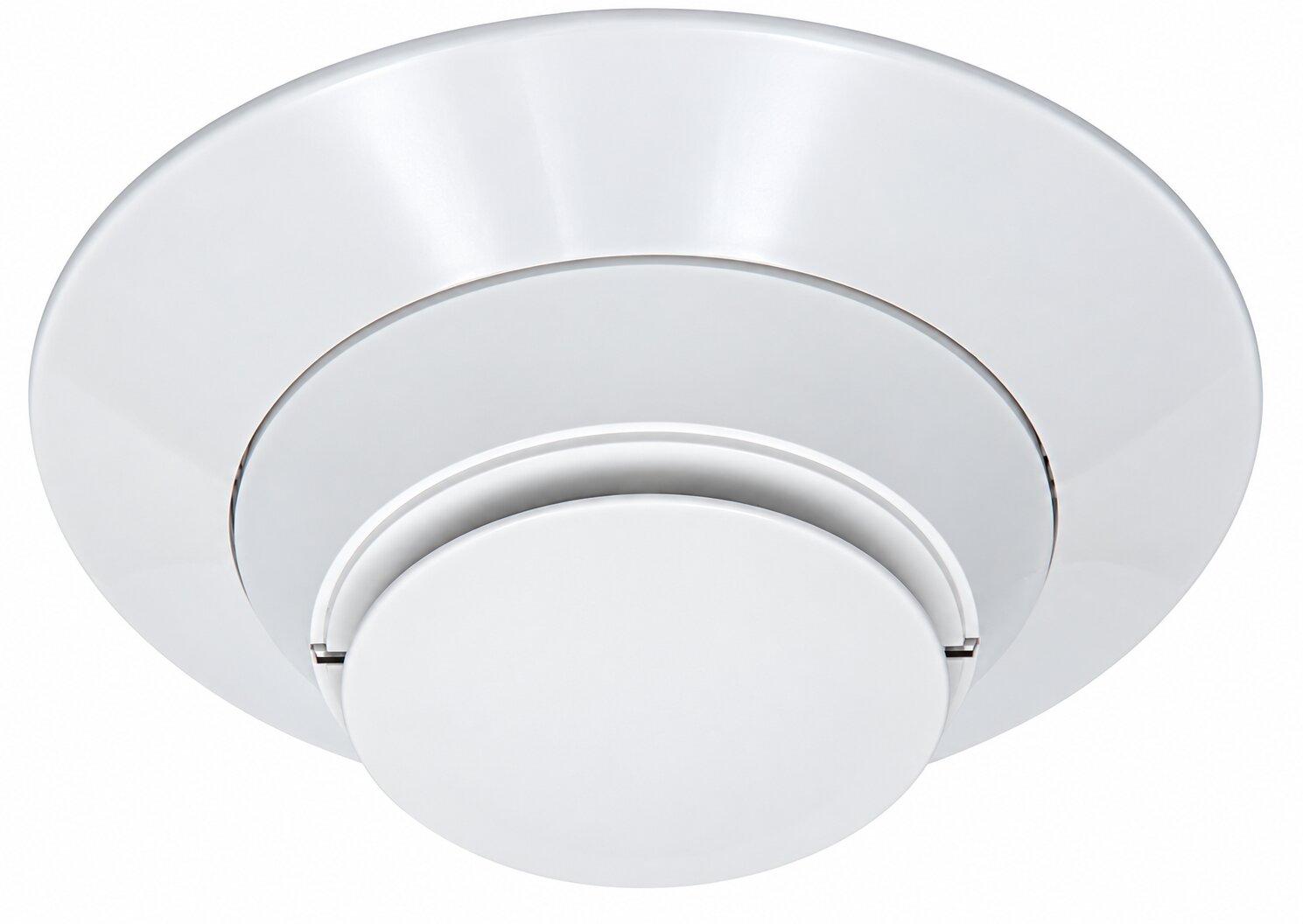

Mircom MIX-2351RAP Photoelectric Smoke Detector with Remote Test

The Mircom MIX-2351RAP Intelligent Photoelectric Smoke Detector with Remote Test provides addressable smoke detection for compatible Mircom fire alarm systems. It combines a photoelectric sensing chamber with Advanced Protocol communications and is specifically designed to support remote testing in compatible duct smoke detector applications.

The MIX-2351RAP features rotary addressing, low standby current, dual LED status indication, and a modern plug-in detector design.

Remote Test Smoke Detection

It operates from 15–32 VDC and draws approximately 200 µA at 24 VDC during normal operation.

Key Features

• Intelligent photoelectric smoke detection
• Remote test capability for duct applications
• Advanced Protocol and CLIP support
• Rotary address switches
• Dual LED status indication
• UL 268A listed for duct applications

Compact Detector Design

Its diameter is approximately 6.2 inches with the B300-6 base or 4.1 inches with the B501 base, providing flexible mounting options for compatible applications.
