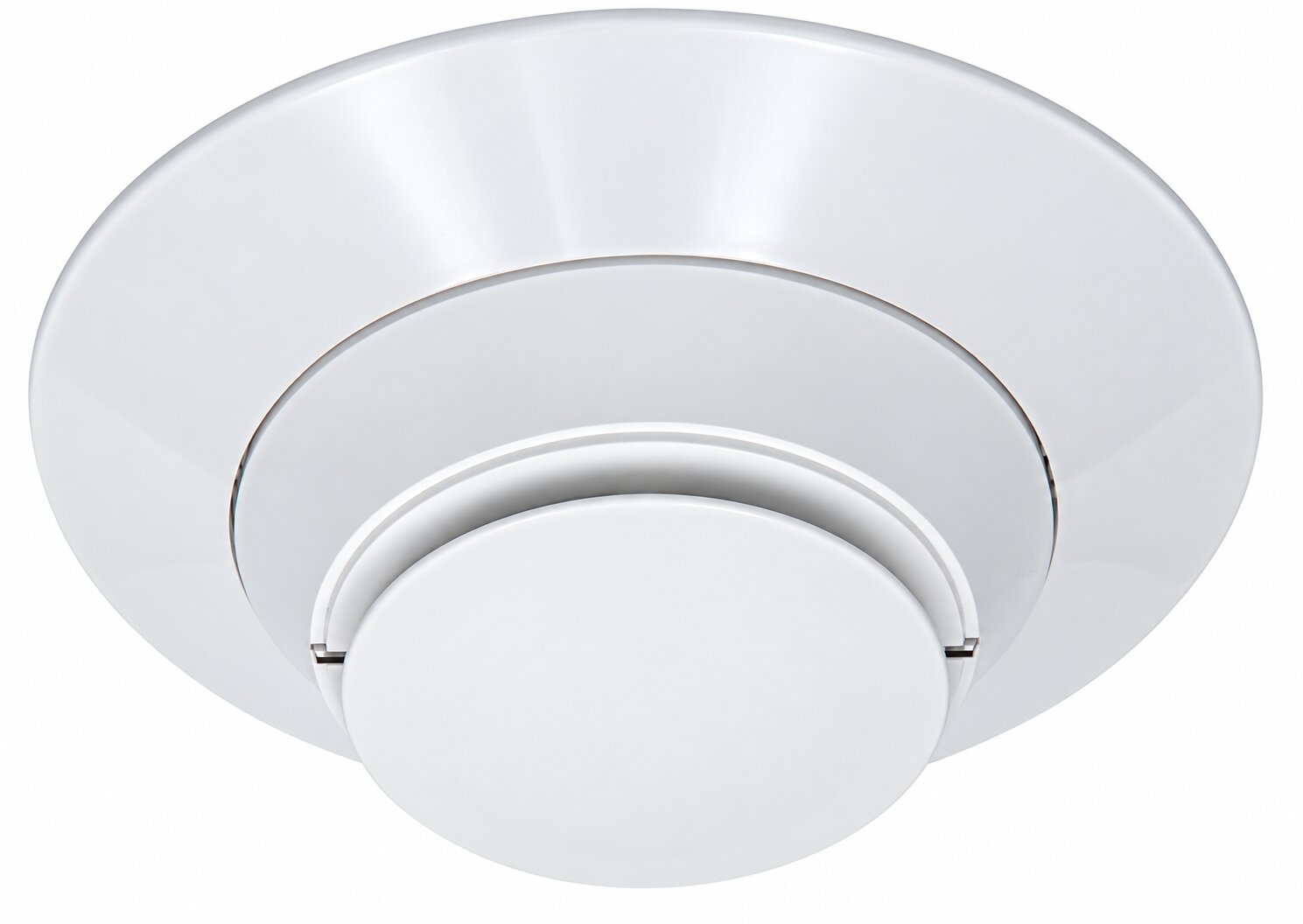

Mircom MIX-2351AP Intelligent Photoelectric Smoke Detector

The Mircom MIX-2351AP Intelligent Photoelectric Smoke Detector provides addressable smoke detection for compatible Mircom fire alarm systems. Its redesigned optical sensing chamber detects smoke from a wide range of combustion sources, while programmable sensitivity allows the detector to be configured for the protected environment.

The MIX-2351AP uses Mircom Advanced Protocol (AP) communication and features rotary addressing, low standby current, and dual LEDs for clear 360-degree status visibility.

Intelligent Photoelectric Detection

The MIX-2351AP continuously monitors smoke sensitivity and reports detector status to the compatible fire alarm control panel. It operates from 15–32 VDC and draws approximately 200 µA at 24 VDC during normal operation.

Key Features

• Intelligent addressable photoelectric smoke detector
• Advanced Protocol communication
• Programmable detector sensitivity
• Rotary address switches
• Dual LEDs with 360° visibility
• UL 268 7th Edition compliant

Compact Detector Design

The Mircom MIX-2351AP measures approximately 2.0 inches high when installed on a B300-6 base. Its diameter is approximately 6.2 inches with the B300-6 base or 4.1 inches with the B501 base. The detector supports multiple compatible mounting-base options.

MIX-2351AP Datasheet
