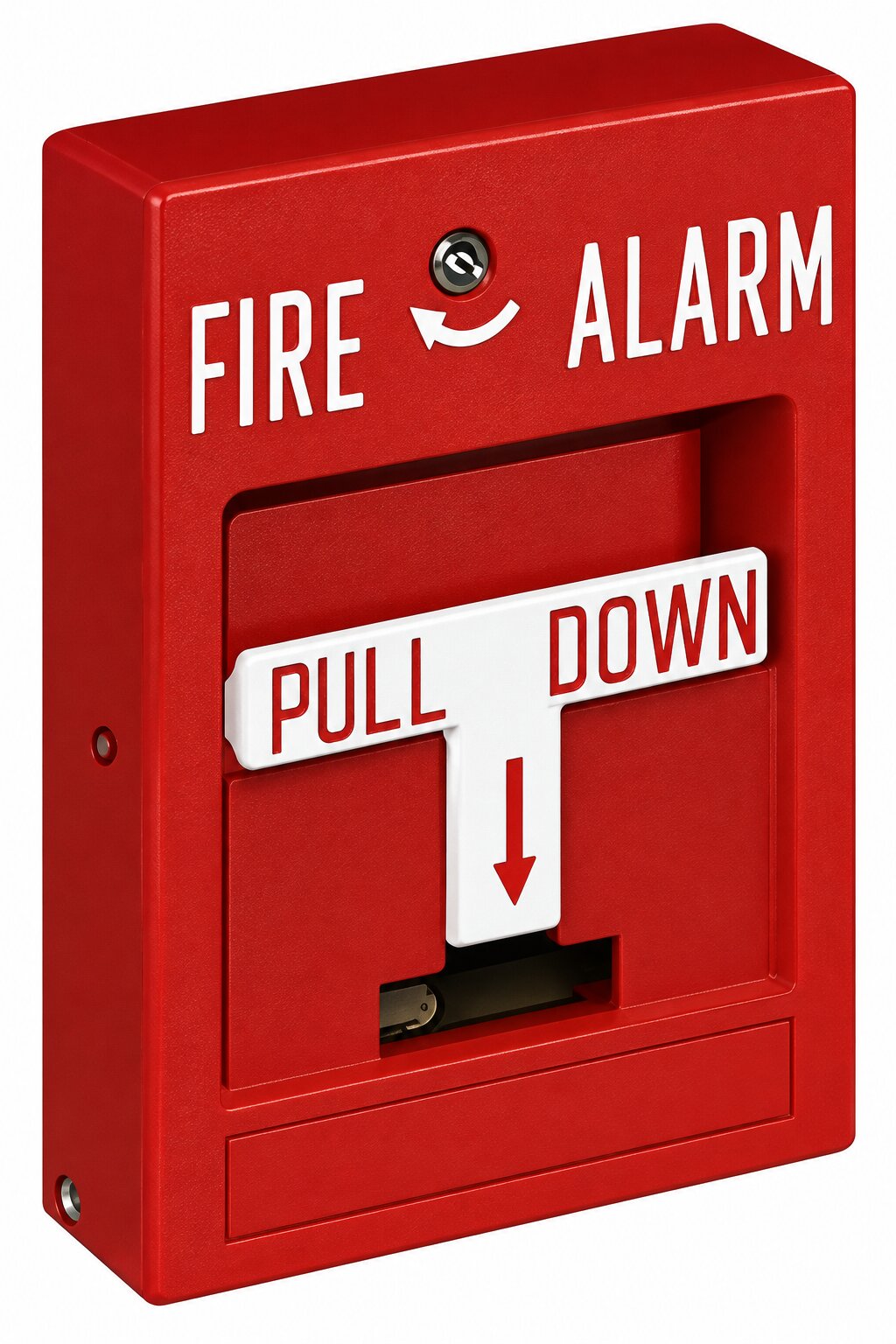

Potter RMS-6T-WP Weatherproof Single Action Pull Station

The Potter RMS-6T-WP Weatherproof Single Action Pull Station provides dependable manual alarm activation for compatible conventional fire alarm and emergency signaling systems. It combines rugged die-cast metal construction with a weatherproof mounting configuration. In addition, its dual Form C contacts offer flexible connections for approved alarm and control circuits.

Single Action Manual Alarm Activation

The Potter RMS-6T-WP features a straightforward pull-down operating mechanism. During an emergency, users pull the station handle downward to activate the connected alarm circuit.

The single-action design does not require a separate cover-lifting step. Therefore, it provides direct manual operation when emergency signaling is necessary.

After activation, the handle remains in its operated position. As a result, personnel can visually identify the activated station.

Weatherproof Construction

This manual pull station belongs to Potter’s Special Application Series. The weatherproof configuration supports installations where standard indoor pull stations may not provide sufficient environmental protection.

Its durable die-cast metal housing offers a rugged construction for demanding locations. Moreover, the protective finish helps support long-term use.

The weatherproof mounting arrangement also helps protect internal components when installers follow the manufacturer’s installation requirements.

Dual Form C Contact Configuration

The station features two independent Form C contact sets in a double-pole, double-throw configuration.

Each contact set includes common, normally open, and normally closed terminals. Therefore, the device can interface with compatible circuits that require two switching functions.

This configuration provides flexibility for specialized fire alarm and emergency signaling applications.

However, technicians must confirm the electrical ratings and connected equipment requirements before installation.

Key Features

• Weatherproof manual fire alarm pull station
• Single-action pull-down operation
• Potter Special Application Series
• Dual Form C contact configuration
• Double-pole, double-throw switching
• Durable die-cast metal housing
• Weatherproof mounting arrangement
• Mechanical latching handle
• Key-controlled reset access
• Terminal block field connections
• Compatible with approved conventional alarm circuits
• Suitable for commercial and industrial applications
• Supports specialized emergency signaling
• Rugged construction for demanding environments
• Professional fire alarm installation accessory

Mechanical Reset Operation

The Potter RMS-6T-WP uses a mechanical latching mechanism. After activation, the station remains in its operated condition until authorized personnel restore it.

Technicians access the internal mechanism through the secured housing. They then return the handle to its normal position and close the station.

In addition, the connected fire alarm control panel may require a separate reset procedure.

This arrangement helps ensure that authorized personnel inspect the alarm condition before restoring normal operation.

Conventional Alarm Circuit Operation

The pull station operates through mechanical switch contacts rather than addressable SLC communication.

Therefore, it does not require an individual digital address or electronic programming.

The connected control equipment monitors the station through its approved circuit arrangement.

The dual-contact configuration can also support specialized control functions when the system design permits.

Typical Applications

This weatherproof single-action pull station supports various commercial and industrial emergency signaling applications.

For example, suitable installations may include industrial facilities, warehouses, manufacturing plants, utility areas, and approved exterior building locations.

The weatherproof design can provide additional protection in locations exposed to changing environmental conditions.

However, the exact installation must meet the manufacturer’s environmental and mounting requirements.

Installation and Compatibility

Before installation, verify the control panel, circuit configuration, contact ratings, and required mounting enclosure.

Also, confirm the station’s location, operating height, and accessibility according to the approved system design.

Qualified fire alarm professionals should install and test the device. Furthermore, technicians should follow Potter instructions and applicable fire alarm codes.

Overall, this Potter weatherproof pull station provides a practical manual activation solution for compatible conventional systems. Its single-action operation, dual Form C contacts, rugged housing, and weatherproof mounting configuration make it suitable for demanding fire alarm and emergency signaling applications.
