Potter PAD100-PSSA Addressable Single Action Pull Station

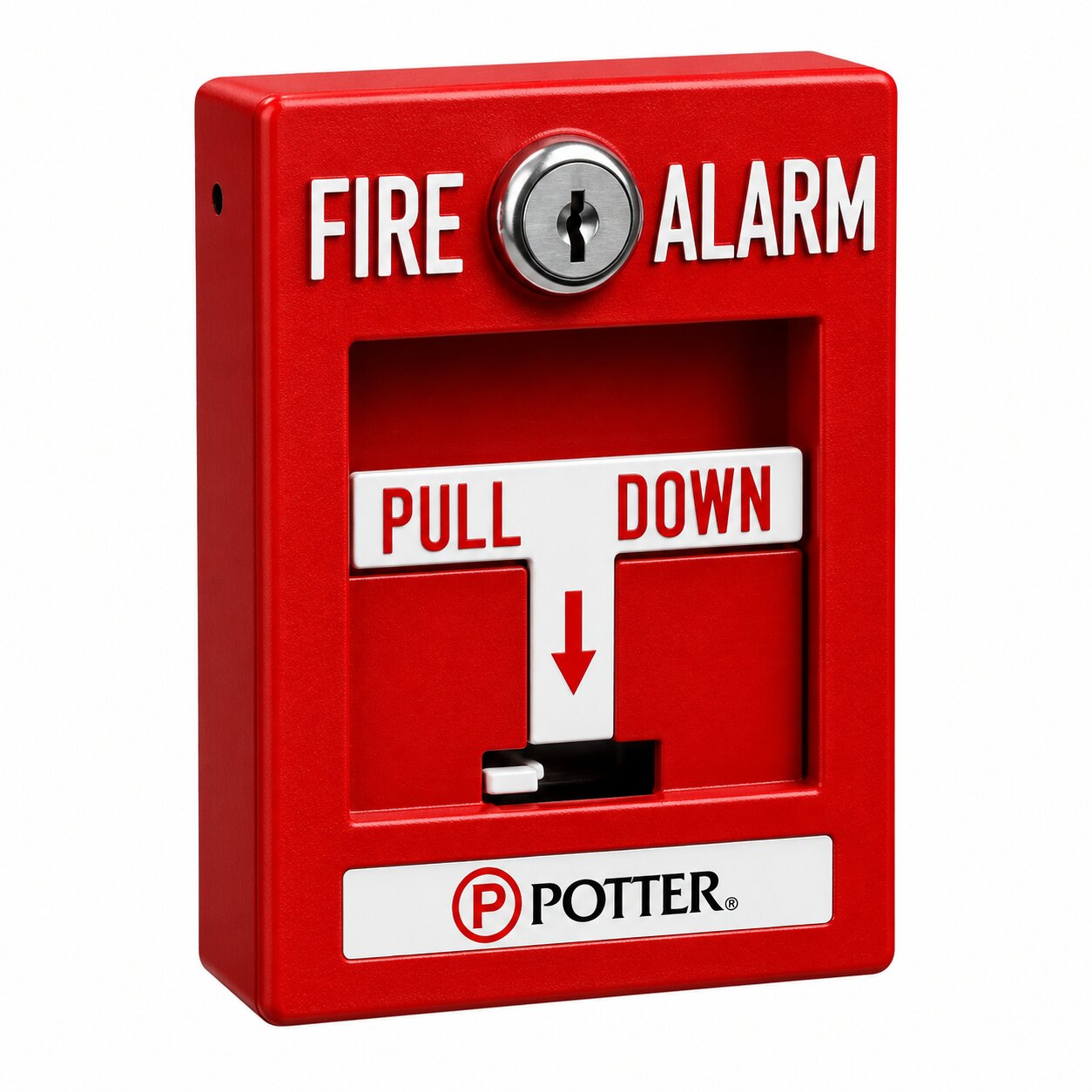

The Potter PAD100-PSSA Addressable Single Action Pull Station provides reliable manual fire alarm activation for compatible Potter addressable fire alarm systems. It features a durable red die-cast housing and a white pull-down T-bar. In addition, its addressable design allows the fire alarm control panel to identify the location of an activated station.

Single Action Manual Fire Alarm Activation

The Potter PAD100-PSSA uses a single-action pull-down mechanism. During an emergency, a user pulls the white T-bar downward to activate the fire alarm.

Unlike double-action pull stations, this model does not require users to lift a cover or complete a second step.

Therefore, the station provides straightforward manual alarm activation.

Once activated, the handle remains in the alarm position. As a result, emergency personnel and maintenance technicians can identify the operated station.

Addressable Fire Alarm Communication

The pull station connects to a compatible Potter Signaling Line Circuit (SLC). It uses one address to communicate with the fire alarm control panel.

Installers configure the device address using DIP switches located on the back of the station.

Consequently, technicians can assign the required address during installation without using a separate programming tool.

The addressable design also helps the control panel identify the exact device that initiated the alarm.

Durable Die-Cast Housing

The station features a rugged die-cast metal housing. Its red finish clearly identifies the unit as fire alarm equipment.

Moreover, the white T-bar provides a highly visible operating handle.

This durable construction makes the station suitable for compatible commercial, industrial, and institutional fire alarm installations.

Key-Operated Reset Mechanism

After activation, authorized personnel must reset the station using the Potter WS-93 key.

First, the technician unlocks and opens the front cover. Next, the technician returns the T-bar to its normal position.

Finally, the technician closes and secures the housing.

Opening the cover also activates the station. Therefore, technicians should follow the proper fire alarm maintenance and reset procedures.

Key Features

• Addressable single-action manual pull station
• Potter PAD100-PS Series
• White pull-down T-bar handle
• Durable red die-cast housing
• One SLC device address
• DIP-switch address configuration
• Key-operated reset mechanism
• Potter WS-93 reset key
• Compatible with selected Potter IPA panels
• Compatible with selected AFC/ARC panels
• Supports Class A SLC wiring
• Supports Class B SLC wiring
• Supports Class X SLC wiring
• Nominal 24 VDC operation
• Low standby current
• Indoor installation
• Single-gang mounting
• Optional surface-mount back boxes
• UL Listed
• FM Approved
• Five-year manufacturer warranty

Electrical Specifications

The Potter PAD100-PSSA operates at a nominal 24 VDC through a compatible addressable SLC.

Its maximum standby current is approximately 200 microamps. In addition, the maximum alarm current is approximately 200 microamps.

Therefore, the device supports addressable communication while maintaining low SLC current requirements.

Installers should always verify available circuit capacity and compatibility with the connected fire alarm control panel.

Mounting Options

The station mounts directly to a compatible single-gang electrical box.

For surface-mounted installations, technicians can use Potter P32-BB or P32-DBB back boxes.

These mounting options provide flexibility for new installations and replacement projects.

Environmental Specifications

The pull station operates in temperatures from 32°F to 120°F (0°C to 49°C).

It also supports relative humidity levels from 0% to 93%, non-condensing.

Therefore, installers should use the station only in indoor environments that meet these requirements.

Typical Fire Alarm Applications

This addressable pull station supports a variety of commercial and institutional fire alarm applications.

For example, compatible installations may include offices, schools, hotels, hospitals, warehouses, retail properties, and industrial facilities.

Its single-action mechanism allows direct manual activation. Furthermore, its addressable communication helps emergency personnel identify the activated station.

Installation and Compatibility

Before installation, verify the fire alarm control panel, SLC protocol, addressing requirements, and mounting configuration.

Also, confirm the required mounting height and location according to the approved fire alarm system design.

Qualified fire alarm professionals should install, address, and test the station. In addition, technicians should follow Potter installation instructions and applicable fire alarm codes.

Overall, this Potter addressable manual pull station provides dependable emergency activation for compatible fire alarm systems. Its single-action design, durable construction, DIP-switch addressing, and secure reset mechanism make it a practical choice for professional installations.
