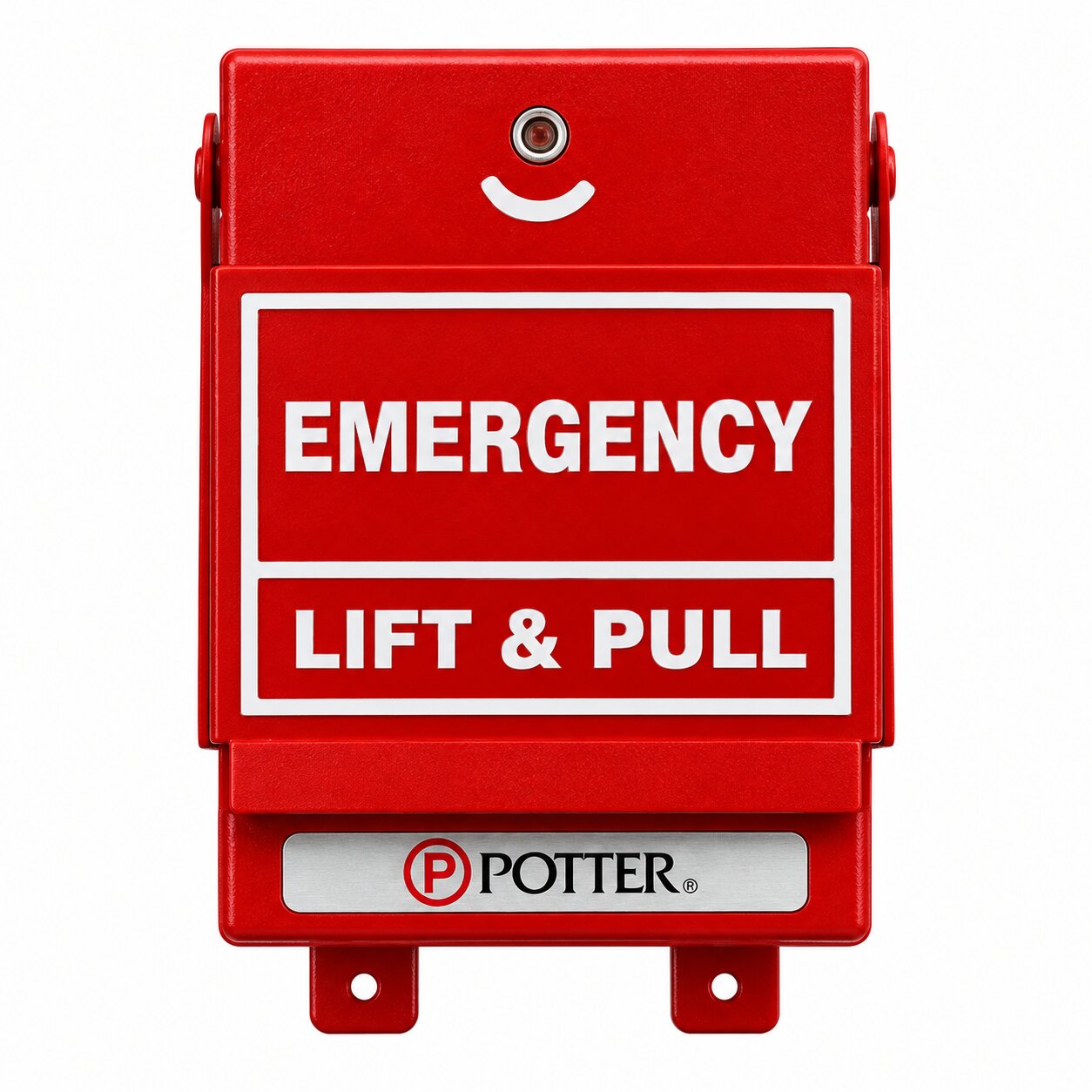

Potter RMS-6T-EXP-WP-LP Explosion Proof Pull Station

Potter RMS-6T-EXP-WP-LP

A high-quality, die-cast metal, explosion-proof manual fire alarm pull station. Available in single or dual-action configurations. I s approved for NEMA-4X applications. .

The dual-action station i s operated simply by pulling the pull handle on the front of the station. As far down as it will go, at which point the handle locks into place. And i s easily visible from up to 50 feet. The activated station i s reset by opening the station with a key. Placing the handle in the normal, upright position, and re-locking the station. Optional dual action Lift and Pull or Break Glass adapter offers added security against unwanted activation.
Architects And Engineers Specifications
The manual pull station shall b e UL Listed for Explosion-Proof. Marine and NEMA 4X applications for use in the intended environment. It shall b e painted red with raised white identification lettering. The station shall have two sets of form C contacts. It shall b e a non-coded, single-action station. That shall latch in the activated position. Wh en activated, the latched handle shall b e easily recognizable as b eing in the activated position. Wh en viewed from a distance of at le ast fifty feet. A locking mechanism shall b e provided to prohibit unauthorized reset of the manual station. A key shall b e required to unlock and reset the station.

Potter RMS-6T-EXP-WP-LP

The dual-action station i s operated simply by pulling the pull handle on the front of the station. As far down as it will go, at which point the handle locks into place. And i s easily visible from up to 50 feet. The activated station i s reset by opening the station with a key. Placing the handle in the normal, upright position, and re-locking the station.
