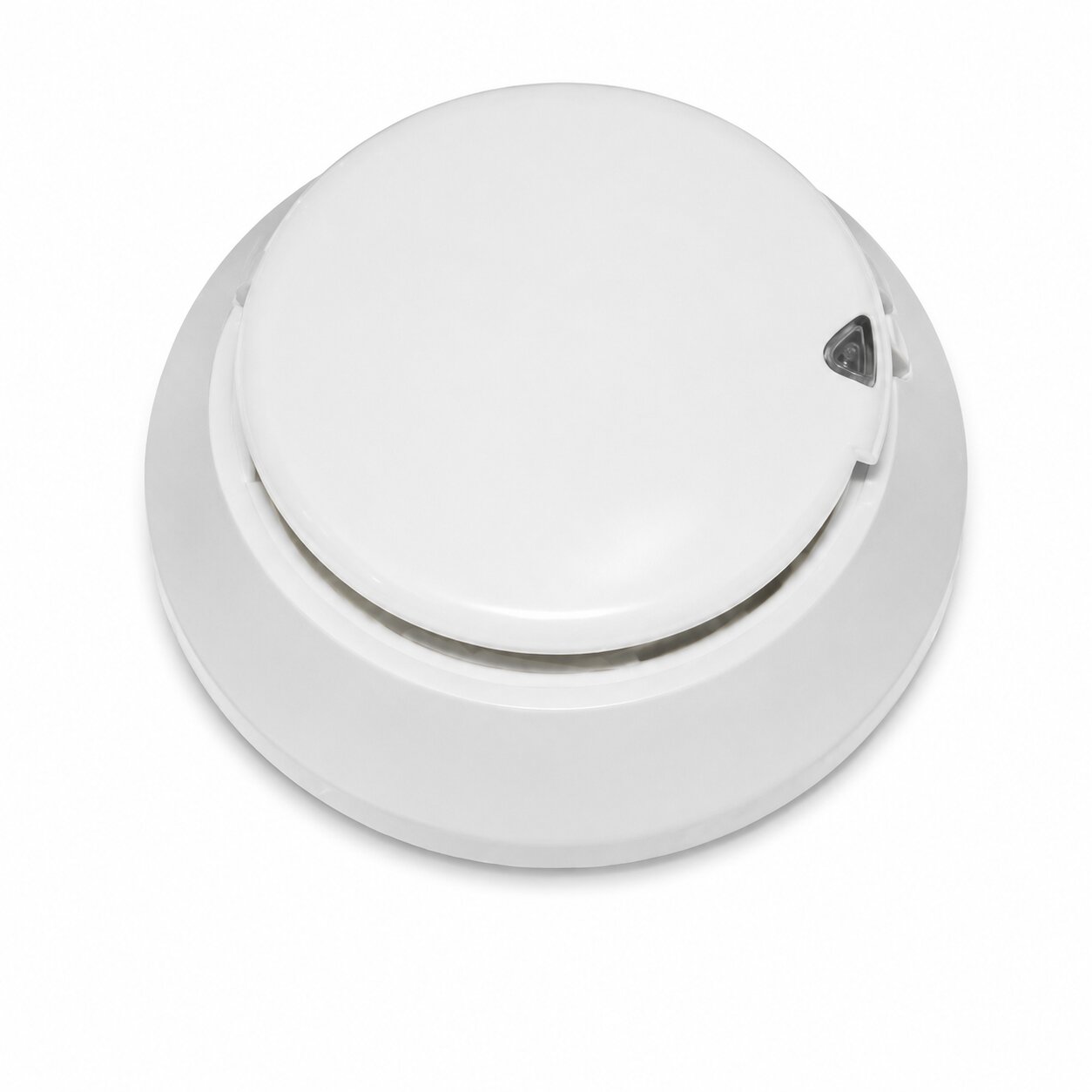

Notifier FPTI-951 Multi-Criteria Detector

The Notifier FPTI-951 is a commercial addressable multi criteria detector designed for compatible Notifier intelligent fire alarm systems. It combines smoke, heat, and infrared (PTIR) sensing technologies into a single detector to provide enhanced fire detection while improving immunity to nuisance alarms caused by dust, steam, and other non-fire particulates.

Using sophisticated multi-sensor algorithms, the detector analyzes multiple fire signatures simultaneously, allowing faster and more reliable detection of developing fires than traditional single-sensor detectors. Its low-profile plug-in design, programmable sensitivity, and continuous panel supervision simplify installation and long-term maintenance. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Multi-criteria fire detection
• Smoke detection
• Heat detection
• Infrared flame signature analysis
• Fixed-temperature and rate-of-rise heat sensing
• Continuous detector supervision
• Programmable detector sensitivity
• Automatic maintenance monitoring
• Individual device identification
• Dual LED status indication

Electrical & System Information

The FPTI-951 operates on compatible Notifier FlashScan® addressable signaling line circuits (SLC) with an operating voltage range of 15–32 VDC. The detector continuously communicates with the fire alarm control panel, allowing programmable sensitivity, maintenance reporting, alarm verification, and precise device identification.

Rotary decimal switches simplify field addressing, while the detector installs on compatible Notifier intelligent detector bases including standard, relay, isolator, and sounder bases.

Features

• Commercial addressable multi criteria detector
• Smoke, heat, and infrared sensing
• Enhanced nuisance alarm immunity
• Rotary decimal addressing
• Dual LEDs with 360° visibility
• Low-profile housing
• Plug-in detector head
• Programmable sensitivity
• Automatic drift compensation
• Magnetic test capability
• Continuous electronic supervision

Mounting & Design

The FPTI-951 installs on compatible B300-6, B501, B210LP, B224RB, B224BI, and B200S detector bases. Its plug-in design allows quick installation, inspection, testing, cleaning, and replacement without disturbing field wiring.

The modern low-profile housing complements contemporary commercial interiors while simplifying routine maintenance.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Data Centers
• Retail Facilities
• Warehouses
• Government Buildings
• Industrial Facilities

Compatibility

Compatible with:

• Notifier ONYX Fire Alarm Control Panels
• FlashScan® Addressable Signaling Line Circuits
• B300-6 Detector Base
• B501 Detector Base
• B210LP Detector Base
• B224RB Relay Base
• B224BI Isolator Base
• B200S Sounder Base
• RA400Z Remote LED Annunciator

Always verify compatibility with the installed fire alarm control panel, detector base, firmware version, and project requirements before installation. The FPTI-951 has been discontinued and replaced earlier-generation multi-criteria detectors in the Notifier product line.

Technical Specifications

Manufacturer: Notifier

Parent Company: Honeywell

Model: FPTI-951

Product Type: Addressable Multi Criteria Detector

Detection Method: Smoke, Heat, and Infrared (PTIR)

Heat Detection: 135°F (57°C) Fixed Temperature with Rate-of-Rise

Communication Protocol: FlashScan®

Operating Voltage: 15–32 VDC

Typical Standby Current: 200 µA @ 24 VDC

Addressing: Rotary Decimal Switches

Status Indicators: Dual LEDs

Operating Temperature: 32°F to 100°F (0°C to 38°C)

Operating Humidity: 15%–90% RH Non-Condensing

Air Velocity Rating: 0–300 ft/min (0–91.4 m/min)

Housing Color: White

Mounting: Compatible Notifier Detector Base Required

Application: Indoor Commercial Fire Alarm Systems

Product Status: Discontinued

Listings: UL 268 7th Edition, UL 521, ULC, FM Approved, and CSFM Listed (application dependent).

Applications

The Notifier FPTI-951 is designed for commercial fire alarm systems requiring advanced multi-sensor fire detection with enhanced immunity to nuisance alarms. Typical applications include office buildings, healthcare facilities, schools, hotels, data centers, retail centers, industrial facilities, warehouses, and other commercial occupancies where rapid, reliable fire detection is critical.

FPTI-951 Datasheet
