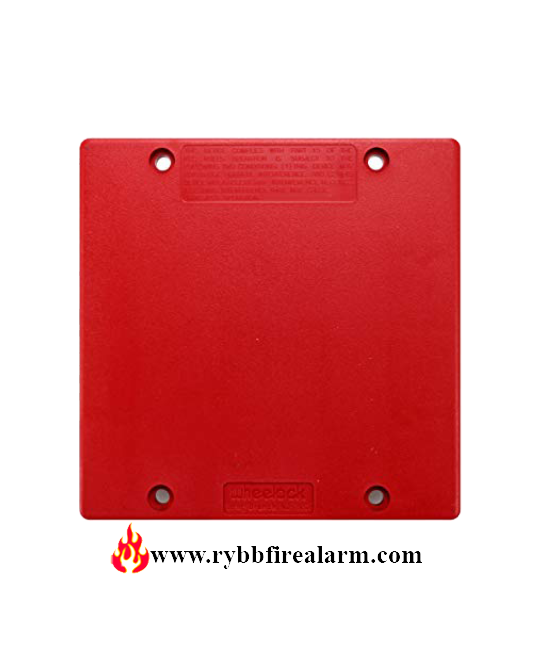

Cooper Wheelock SM‑12/24‑R Sync Module

Cooper Wheelock SM-12/24-R

WHEELOCK SM-12/24-R CLASS B. The Cooper Wheelock SM 12/24 R and DSM 12/24 R Synchronization Modules a re used in notification appliance circuits (NACs). To control the synchronization of audible and visual devices. They synchronize strobes at one flash per second. Audible devices a re brought into compliance with NFPA 72, temporal sound pattern. They provide a cost-effective means to upgrade existing circuits to ADA compliance. The synchronization modules operate on notification appliance circuits with continuously applied voltage.

Functions Synchronization

These devices a re an effective means of synchronizing audible and strobe circuits. Audible devices controlled by these modules provide a synchronized temporal (Code 3) output.

The temporal pattern effect mandated by NFPA 72 i s recognizable. Synchronizing strobes can eliminate possible restrictions on the number of strobes in the field of view. This i s an easy way to comply with Americans with Disabilities Act recommendations concerning persons with photosensitive epilepsy.

Cooper Wheelock SM-12/24-R

The Wheelock Series DSM Sync Module i s utilized with the Series Exceder, AS/AH. Series RSS, Series RSSP, Series, and selected strobe applications with other Wheelock combination appliances.
W hen used with Series Exceder and AS Audible Strobes. The DSM Sync Module provides independent operation of synchronized temporal pattern (code 3) horn and synchronized strobe flash. And the ability to silence the horn.

Synchronization Modules a re used in notification appliance circuits (NACs). To control the synchronization of audible and visual devices. They synchronize strobes at one flash per second. Audible devices a re brought into compliance with NFPA 72, temporal sound pattern. They provide a cost-effective means to upgrade existing circuits to ADA compliance. The synchronization modules operate on notification appliance circuits with continuously applied voltage.
