System Sensor SPSRLED-BP10 Speaker Strobe Pack of 10

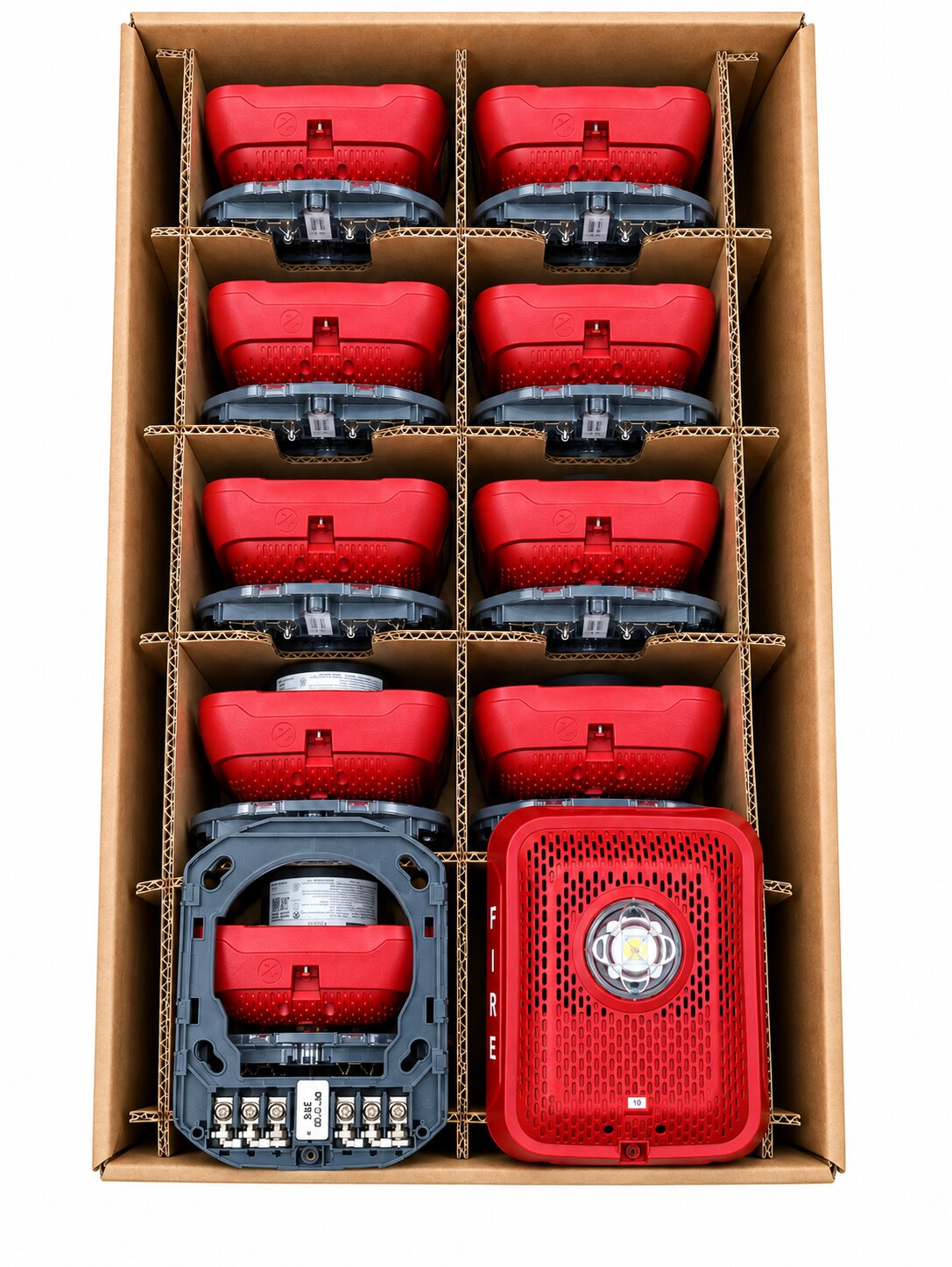

System Sensor SPSRLED-BP10 (LED Speaker-Strobe, Bulk Pack of 10)

The System Sensor SPSRLED-BP10 is a bulk pack (10 units) of wall-mount LED speaker + strobe devices from the System Sensor L-Series with LED line. These combine voice/tone announcing capability (speaker) and high-intensity visual signaling (LED strobe) in a single unit, suitable for fire alarm and also mass notification systems. Also, it’s intended for indoor use.

Key Features & Benefits

• LED Technology, Lower Current Draw
  The strobe uses LED illumination, which significantly reduces current consumption compared with xenon strobes—helping maximize NAC (notification appliance circuit) capacity.

• Plug-in Design & Universal Mounting Plate
  The mounting plate is prewired, allowing wire dressing and continuity testing before docking the unit—reducing installation errors and ground faults.

• Field-Selectable Settings
  • Seven candela settings for wall speaker strobes: 15, 30, 75, 95, 110, 135, 185 cd
  • As well as rotary switches to adjust speaker voltage (25 / 70.7 Vrms) and power taps (¼, ½, 1, 2 W)

• Diagnostic Test Points (DVM)
  Test points on the face allow voltage measurement with a digital voltmeter without removing the device, facilitating quicker troubleshooting.

• High-Fidelity Sound & High Volume
  The speaker design maintains low distortion while delivering audible output levels appropriate for high ambient noise conditions.

• Synchronization Support
  Strobes synchronize via the System Sensor’s sync protocol or MDL sync modules.

SPSRLED-BP10 Datasheet
