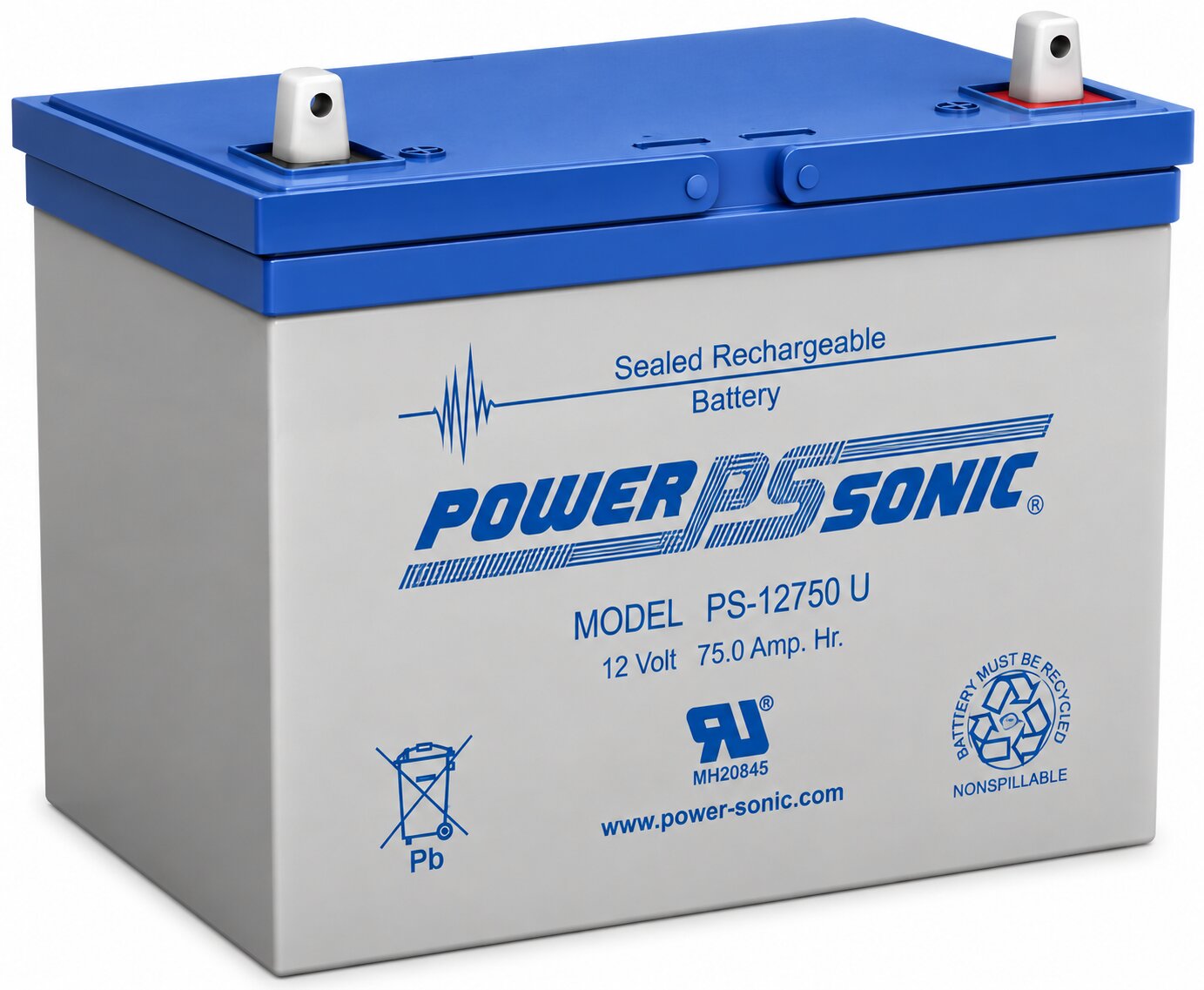

Power-Sonic PS-12750 U 12V 75Ah SLA AGM Battery

LOCAL PICKUP ONLY

The Power-Sonic PS-12750 U 12V 75Ah SLA AGM Battery provides dependable rechargeable power for general-purpose, standby, and light cyclic applications. It combines sealed lead-acid construction with Absorbent Glass Mat technology for reliable and maintenance-free operation. In addition, its high capacity makes it suitable for fire and security systems, UPS equipment, emergency lighting, telecommunications, and other backup power applications.

Reliable 12V High-Capacity Power

The Power-Sonic PS-12750 U provides a nominal voltage of 12 volts. Its rated capacity reaches 80Ah at the 20-hour rate and 75Ah at the 10-hour rate. Therefore, it offers substantial energy storage for equipment that requires extended standby power.

The battery belongs to the Power-Sonic General Purpose SLA Series. This series supports float and light cyclic applications. As a result, the battery works well in systems that remain on standby and provide power when the primary source becomes unavailable.

Sealed AGM Technology

Absorbent Glass Mat technology holds the electrolyte inside the battery. Therefore, users do not need to add water or perform routine electrolyte maintenance.

The valve-regulated design also provides spill-proof operation under normal conditions. Moreover, gas recombination technology helps support efficient charging and dependable battery performance.

Universal Nut-and-Bolt Terminals

The U version features universal heavy-duty posts with nut-and-bolt fasteners. This terminal configuration provides a secure electrical connection for compatible equipment.

Power-Sonic specifies a terminal torque range of 11.0 to 14.7 N·m for the U terminal configuration. However, installers should always follow the equipment and battery installation requirements when making electrical connections.

Key Features

• 12V rechargeable sealed lead-acid battery
• 80Ah capacity at the 20-hour rate
• 75Ah capacity at the 10-hour rate
• SLA and AGM battery technology
• U universal heavy-duty terminals
• Nut-and-bolt terminal fasteners
• Valve-regulated construction
• Maintenance-free operation
• Gas recombination technology
• Rugged ABS case and cover
• Excellent power-to-volume ratio
• Approximately 960Wh stored energy
• Designed for float and light cyclic applications
• Suitable for professional backup power systems
• Recommended Power-Sonic charger: PSC-126000ACX

Dimensions and Specifications

The Power-Sonic PS-12750 U measures approximately 10.24 inches long, 6.61 inches wide, and 8.19 inches high. Total height over the terminals is approximately 8.43 inches.

The battery weighs approximately 50.04 pounds (22.7 kg). In addition, the current specification lists an internal resistance of approximately 7.2 milliohms.

Its substantial capacity makes it suitable for applications that need extended backup power. However, buyers should verify the available installation space and weight capacity before ordering.

Common Applications

This rechargeable SLA battery supports a wide range of professional applications. For example, it can serve in fire and security systems, emergency lighting, medical equipment, signaling equipment, telecommunications, solar installations, UPS systems, utilities, and wind applications.

Its high capacity also makes it useful for larger standby systems that require more reserve power than smaller 7Ah, 12Ah, or 18Ah batteries.

Charging and Operating Performance

For standby or float service, Power-Sonic specifies a constant-voltage charging range of 13.5 to 13.8 volts. For cyclic applications, the battery requires a higher charging voltage according to the manufacturer’s charging specifications.

The battery supports charging temperatures from -4°F to 104°F. Its discharge operating range extends from 5°F to 122°F.

Temperature, charging conditions, and discharge depth can affect battery performance and service life. Therefore, always use an appropriate charging system and follow the manufacturer’s recommendations.

Replacement and Compatibility

Before replacing an existing battery, confirm that the equipment requires a compatible 12V SLA battery with the appropriate capacity. Also, verify the U terminal configuration, physical dimensions, available installation space, and charging requirements.

Always use suitable cables and properly secure the nut-and-bolt terminal connections. In addition, follow the equipment manufacturer’s instructions for battery installation, charging, testing, and replacement.

Overall, this Power-Sonic rechargeable battery provides dependable high-capacity energy storage for standby and light cyclic applications. Its 12V output, AGM technology, universal terminals, maintenance-free construction, and substantial reserve capacity make it a practical choice for many professional backup power systems.
