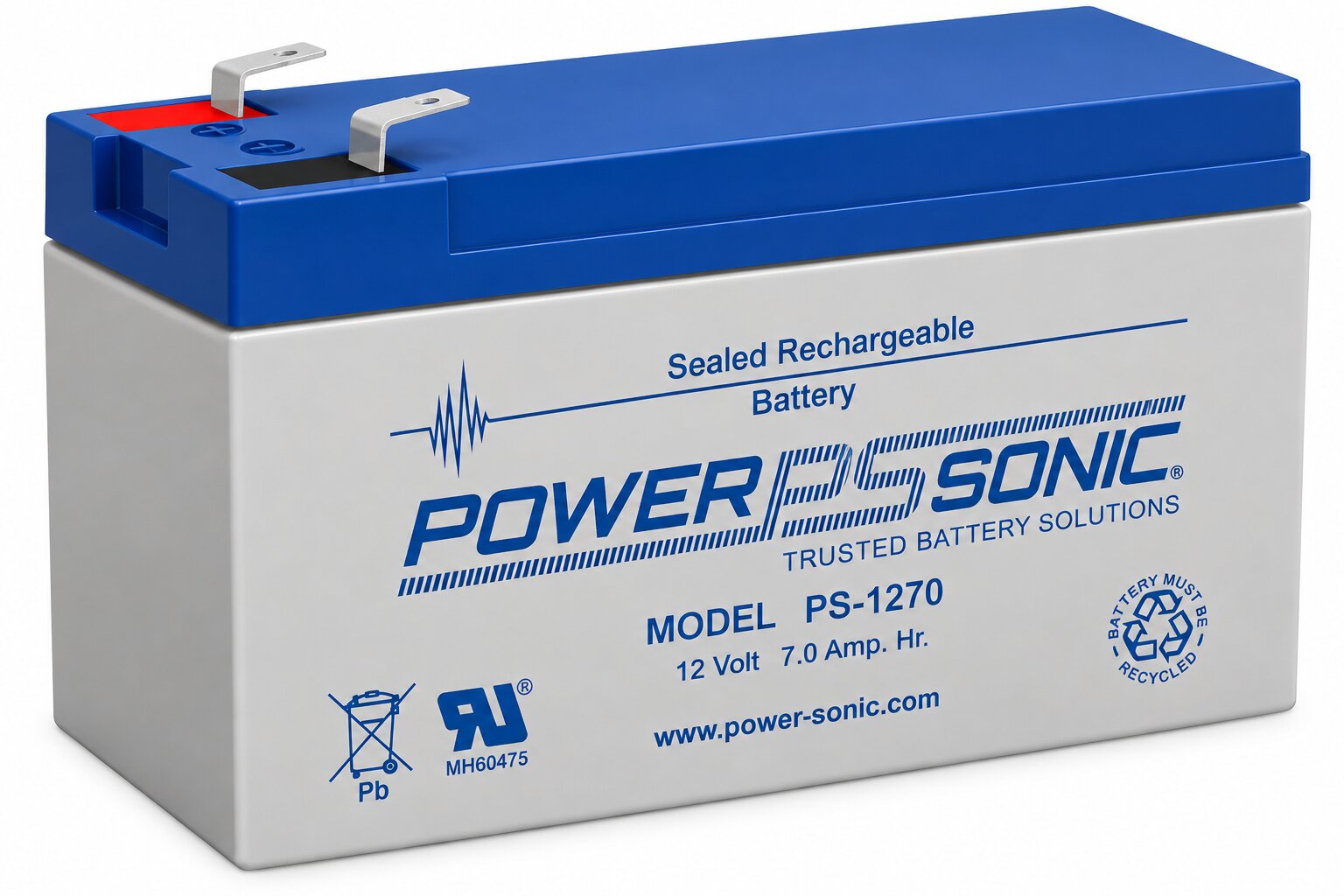

Power-Sonic PS-1270 F2 12V 7Ah SLA AGM Battery

LOCAL PICKUP ONLY

The Power-Sonic PS-1270 F2 12V 7Ah SLA AGM Battery provides dependable rechargeable power for general-purpose and standby applications. It combines sealed lead-acid construction with Absorbent Glass Mat technology for reliable, maintenance-free operation. In addition, its compact size makes it suitable for fire and security systems, emergency lighting, UPS equipment, medical devices, and other compatible applications.

Reliable 12V 7Ah Power

The Power-Sonic PS-1270 F2 provides a nominal voltage of 12 volts and a rated capacity of 7Ah at the 20-hour rate. Therefore, it offers a practical power solution for equipment that requires a compact rechargeable battery.

The battery belongs to the Power-Sonic PS General Purpose Series. This series supports float and light cyclic applications. As a result, the battery works well in equipment that requires dependable standby power and occasional discharge cycles.

Sealed AGM Technology

Absorbent Glass Mat technology holds the electrolyte within the battery. Therefore, users do not need to perform routine water maintenance or refilling.

The valve-regulated construction also provides spill-proof operation under normal conditions. Moreover, gas recombination technology supports efficient charging and dependable battery performance.

F2 FASTON Terminals

This model features F2 FASTON quick-disconnect terminals. Each terminal measures approximately 0.250 × 0.032 inches. Therefore, buyers should confirm that their existing equipment uses compatible F2 connectors before purchasing.

Terminal size matters when replacing an existing battery. Always compare the voltage, capacity, terminal configuration, and physical dimensions with the original battery.

Key Features

• 12V rechargeable sealed lead-acid battery
• 7Ah capacity at the 20-hour rate
• Absorbent Glass Mat technology
• F2 FASTON quick-disconnect terminals
• F2 terminal size of 0.250 × 0.032 inches
• Valve-regulated construction
• Maintenance-free operation
• Gas recombination technology
• Rugged ABS case and cover
• Excellent power-to-volume ratio
• Designed for float and light cyclic applications
• Suitable for fire and security equipment
• Compatible with many backup power applications

Dimensions and Specifications

The Power-Sonic PS-1270 F2 measures approximately 5.94 inches long, 2.56 inches wide, and 3.70 inches high. Its total height over the terminals is approximately 3.94 inches.

The current manufacturer datasheet lists an approximate weight of 4.34 pounds. In addition, the battery has a nominal stored energy rating of 84Wh.

Common Applications

This rechargeable battery supports many professional and general-purpose applications. For example, Power-Sonic lists emergency lighting, fire and security systems, medical equipment, signaling systems, solar equipment, telecommunications, UPS systems, utilities, and wind applications.

Its compact dimensions also make it useful as a replacement battery in compatible alarm panels and backup power equipment.

Charging and Operating Performance

For standby service, Power-Sonic specifies a float charging range of 13.5 to 13.8 volts. For cyclic applications, the manufacturer specifies a higher constant-voltage charging range.

The battery also supports a wide operating temperature range. However, battery performance and service life can vary with temperature, charging conditions, and discharge depth.

Replacement and Compatibility

Before replacing an existing battery, confirm that the equipment requires a compatible 12V 7Ah SLA battery. Also, verify the F2 terminal configuration and available installation space.

Use a charger designed for compatible sealed lead-acid batteries. Furthermore, follow the equipment manufacturer’s charging and replacement instructions.

Overall, this Power-Sonic rechargeable battery provides a compact and dependable solution for standby and light cyclic applications. Its 12V output, 7Ah capacity, AGM construction, F2 terminals, and maintenance-free design make it a practical replacement battery for many compatible systems.

PS-1270 F2 Datasheet
