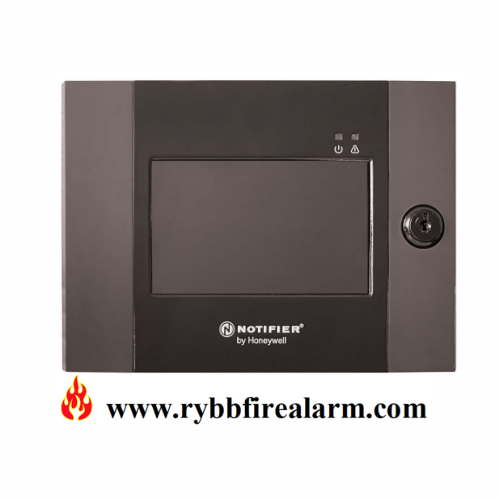

Notifier RLD Remote Display (new)

The RLD is a mimic annunciator for the NOTIFIER INSPIRE™ Series fire alarm control panels (FACP) or NCD (Network Control Display). This provides the FACP or NCD with remote, seriallyconnected display. A five inch touchscreen display provides system status, point information, and event counters. The display shows two events simultaneously, and pages through up to 50 of the highest priority events in the system. The RLD also provides system control with six programmable softtouch buttons as well as Acknowledge, Silence, Reset and Drill.
NOTE: The RLD display can be configured to support Drill or Alarm Signal ON. Drill and Alarm Signal ON are mutually exclusive on the RLD due to the limited space on the display.
The N16 FACP supports a maximum of 10 RLDs, configured as a router. These take up one of the 10 available router addresses. The “router” annunciators may be a mix of ACM-30 and RLD units. Each
RLD will occupy one “router” address. The RLD does not support peripheral annunciators.

Datasheet
