Notifier FZM-1A Intelligent Module

Notifier FZM-1A Intelligent Module

This information – included as a quick reference installation guide. Refer to the control panel installation manual for detailed system information. If the modules will – installed in an existing operational system. Inform the operator and local authority that the system will – temporarily out of service.
This manual should – left with the owner/user of this equipment.

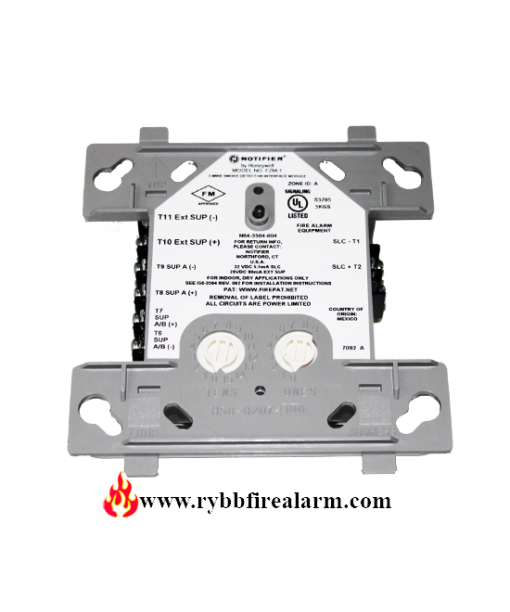

The FZM-1A Interface Module – intended for use in intelligent, two-wire systems. Where the individual address of each module – selected using the built-in rotary switches. This module allows intelligent panels to interface and monitor two-wire conventional smoke detectors. It transmits the status (normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors – monitored must – UL-compatible with this module. The FZM-1A has a panel-controlled LED indicator and can – used to replace an MMX-2 module in existing systems.

To ensure proper operation, this module shall – connected to a compatible Notifier system control panel only.

Notifier FZM-1A Intelligent Module

NOTE: All wiring must conform to applicable local codes, ordinances, and regulations. This module – intended for power-limited wiring only.
1. Install module wiring by the job drawings and appropriate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box
