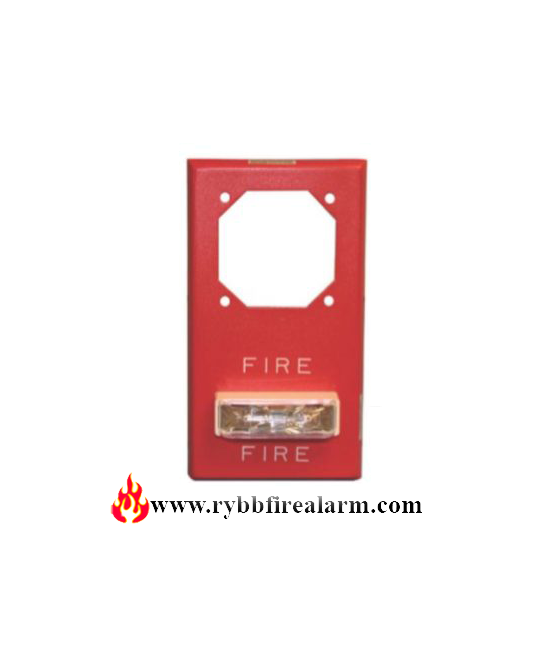

The Siemens ST-MC-RETRO-R retro strobe comes listed for indoor use only. Furthermore, all inputs are compatible with standard, reverse polarity supervision of a Fire-Alarm Control Panel circuit wiring. Also, the selector switch for selecting the candela is tamper-resistant.
In general, the Siemens ST-MC-RETRO-R strobe intensity for wall-mount models has field-selectable settings and is rated per UL Standard 1971 for 15/30/75/110cd where multi-Candela appliances are specified. When synchronization is require, the appliance is compatible with Siemens’ DSC Sync Modules; the Siemens 50-point, 252-point, and 504-point fire alarm control panels (FACPs).
The strobes will not drift out of synchronization at any time during operation. If the sync module or Power Supply fails to operate, the strobe will revert to a non-synchronized flash rate. Besides, the strobes come designed for indoor (surface or flush) mounting.
Features / Specifications
- Strobes feature low-current draw
- Ceiling-mount, multi-Candela models are available with field-selectable Candela settings of 15/30/75/95cd or 115/177cd
- Wall-mount, multi-Candela models are available with field-selectable Candela settings of 15/30/75/110cd
- Strobes produce one (1) flash per second over the regulated voltage range
- Fast installation with In / Out screw terminals using #12 to #18 AWG wire
- Synchronized using the Siemens DSC sync modules; the Siemens 50-point, 252-point, and 504-point fire alarm control panels (FACPs)
