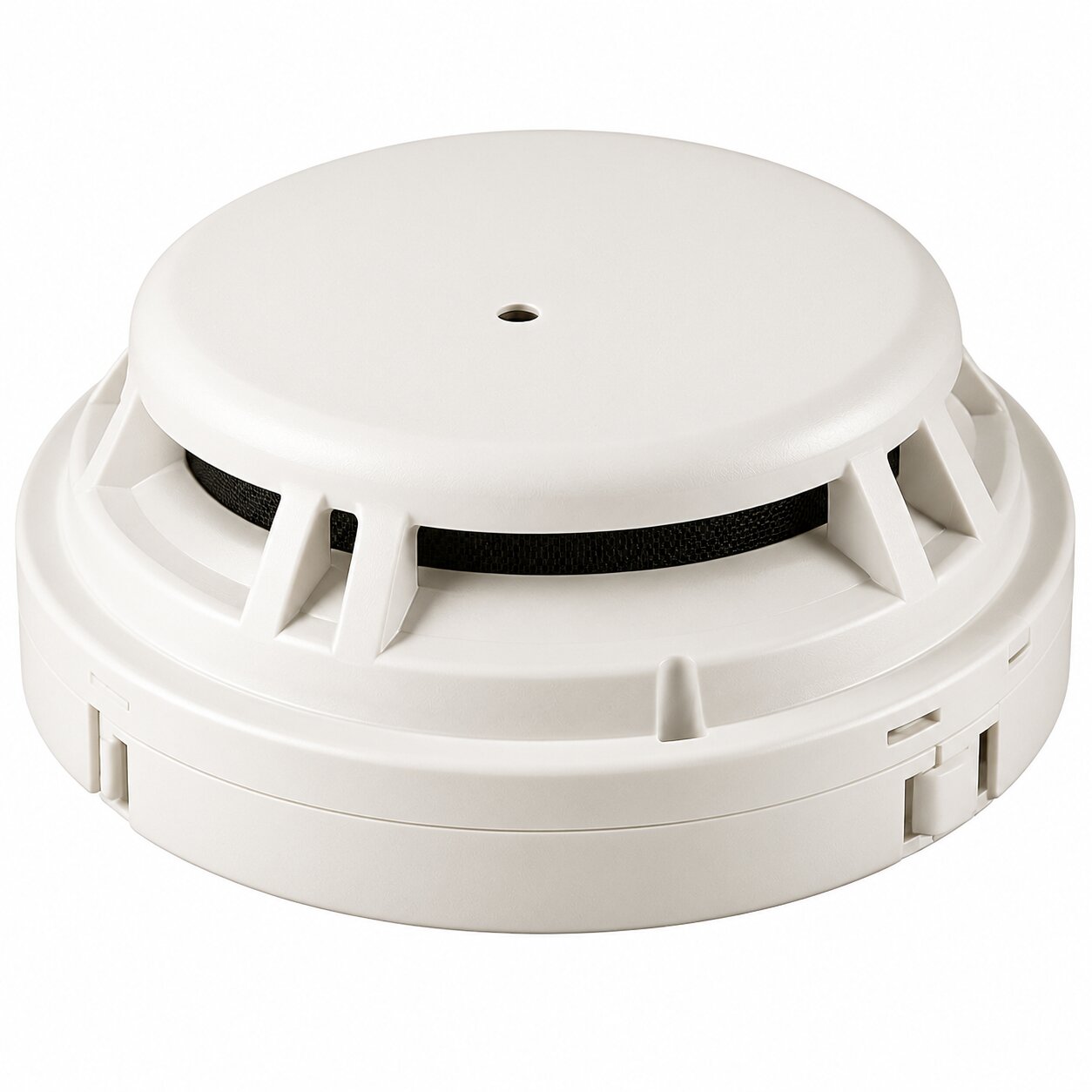

Siemens FDOOT441 Multi-Criteria Fire/Smoke Detector P/N:S54320-F7-A1

The Siemens FDOOT441 Multi-Criteria Fire Detector, P/N S54320-F7-A1, provides intelligent smoke and heat detection for compatible Desigo Fire Safety systems. It combines dual optical sensing with thermal detection to recognize developing fire conditions. In addition, its advanced signal processing helps reduce unwanted alarms while maintaining dependable fire detection performance.

Advanced Multi-Criteria Fire Detection

The Siemens FDOOT441 uses multiple sensing elements to monitor the protected environment. Its two optical sensors analyze smoke through forward and backward light-scattering technology.

Meanwhile, the thermal sensor monitors heat and temperature changes. As a result, the detector evaluates several fire characteristics before determining the appropriate alarm response.

This approach supports detection of both smoldering and flaming fires. Moreover, it provides greater flexibility than basic single-sensor detectors.

ASAtechnology for Nuisance Alarm Resistance

Siemens ASAtechnology uses advanced signal processing to analyze smoke and heat information.

The detector evaluates environmental conditions and compares them with selected detection profiles. Therefore, it can distinguish many nuisance conditions from developing fire signatures.

In addition, the system supports up to 22 application profiles. Installers can select an appropriate profile according to the protected environment and approved fire alarm design.

Integrated ISOtechnology

The detector includes built-in ISOtechnology for Signaling Line Circuit protection.

This feature supports True Class X SLC operation in compatible system configurations. Consequently, the detector can help isolate certain wiring faults and maintain communication with unaffected devices.

Integrated circuit isolation also supports troubleshooting and system reliability.

Key Features

• Intelligent addressable multi-criteria fire detector
• Siemens part number S54320-F7-A1
• Desigo Fire Safety S-LINE technology
• Dual optical smoke sensing
• Thermal heat detection
• Forward and backward light-scattering sensors
• Advanced ASAtechnology signal processing
• Built-in ISOtechnology circuit isolation
• True Class X SLC capability
• Up to 22 selectable application profiles
• Programmable smoke and heat functions
• Fixed-temperature and rate-of-rise detection
• Very Early Warning Fire Detection capability
• Automatic environmental compensation
• Remote sensitivity monitoring
• Supervisory temperature monitoring
• Tri-color LED status indication
• Polarity-insensitive SureWire technology
• Compatible with selected DB-11 detector bases
• UL 268 7th Edition Listed
• UL 521 Listed
• UL 268A Listed for approved duct applications

Programmable Smoke and Heat Functions

The Siemens FDOOT441 supports several operating configurations. The compatible fire alarm control panel can configure smoke and heat sensing according to the required application.

For example, technicians can select different sensitivity profiles and thermal response characteristics.

The heat sensor supports fixed-temperature and rate-of-rise operation. Therefore, the detector can respond to multiple fire conditions within its approved configuration.

Very Early Warning Fire Detection

The detector supports high-sensitivity smoke detection for specialized applications.

Siemens documentation identifies a configurable pre-alarm threshold of 0.2% per foot obscuration and an alarm threshold of 1.0% per foot obscuration in the applicable high-sensitivity profile.

As a result, the detector can support Very Early Warning Fire Detection applications when the system meets the required design and programming conditions.

Tri-Color LED Status Indicator

The detector features a tri-color LED for local status indication.

A green indication can show normal supervisory operation. Yellow identifies a trouble condition, while red indicates an alarm.

Therefore, technicians can quickly recognize the detector’s operating status during inspection and maintenance.

Environmental Specifications

The detector operates in temperatures from 32°F to 120°F (0°C to 49°C).

It supports relative humidity from 15% to 95%, non-condensing. In addition, approved applications may support air velocities up to 4,000 feet per minute.

Technicians should always verify environmental requirements before installation.

Typical Fire Alarm Applications

This Siemens multi-criteria detector supports compatible commercial and institutional fire alarm installations.

Typical applications include offices, schools, healthcare facilities, hotels, warehouses, telecommunications facilities, and industrial properties.

Its advanced nuisance alarm resistance makes it useful in environments where changing conditions can affect conventional smoke detection.

Installation and Compatibility

Before installation, verify the fire alarm control panel, SLC configuration, detector base, and selected detection profile.

Also, confirm compatibility with the existing Desigo Fire Safety system and required firmware.

Qualified fire alarm professionals should install, program, and test the detector. Furthermore, technicians should follow Siemens installation instructions and applicable fire alarm codes.

Overall, this Siemens intelligent fire detector provides flexible multi-criteria protection for compatible addressable systems. Its dual optical sensors, thermal detection, ASAtechnology, integrated isolation, and programmable profiles make it a practical choice for professional fire detection applications.
