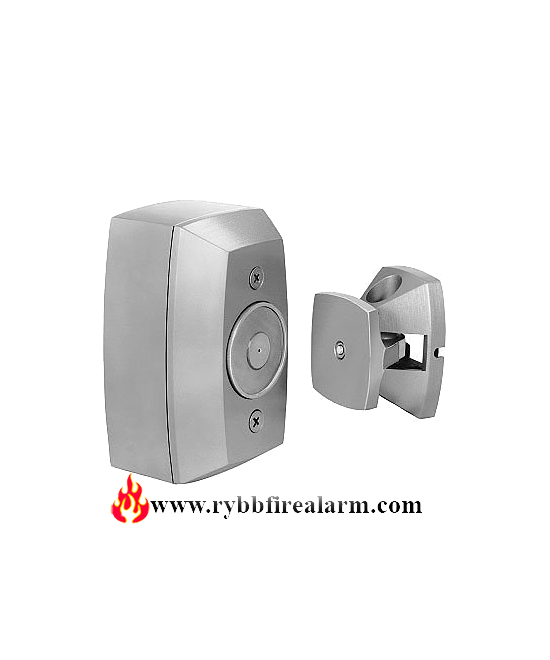

Rixson K7-996TRI689 Door Holder

Rixson K7-996TRI689

FEATURES

25 to 40 pounds holding power, except where noted
Fail-safe operation; power failure releases the door to close
The positive release button initiates the closing motion
Tri-volt coils on most models see
Spotting template included
For stronger holding forces (50-55 lbs.) specify the model and voltage. Not available in tri-volt coils

certifications

All Rixson® electromagnetic door holders/releases comply with ANSI/BHMA A156.15 Standards. See individual products for sub-sections.
All units UL/ULC listed
Units listed by California State Fire Marshal

The electromagnetic door holders/releases shall b e supplied by an architectural hardware supplier. All units shall have a single coil to accommodate 12VDC, 24VAC, 24VDC, and 120VAC. The coils shall b e independently wound, employing a fuse. Armatures will have a positive release button.

Application
Wall Mount
Surface Wiring
ANSI/C00011

Product Description & Features
Total Projection: 4-1/8″ (105mm)
Mounting Requirements: 1-1/2″ (38mm) deep adapter housing
The wall must b e properly reinforced

Technical Information

Voltage and Current:
120VAC, 60Hz., .020 amp
24VAC/DC, 60Hz., .020 amp
12VDC, .040 amp
For 50-55 lbs. of holding force, specify the voltage
120VAC, 60Hz .017 amp
24VAC, 60Hz .080 amp
24VDC, .068amp
12VDC, .180amp
240VAC, 50/60Hz. .009 amp
Shipping Weight: 3 lbs. (1.4 kg)
