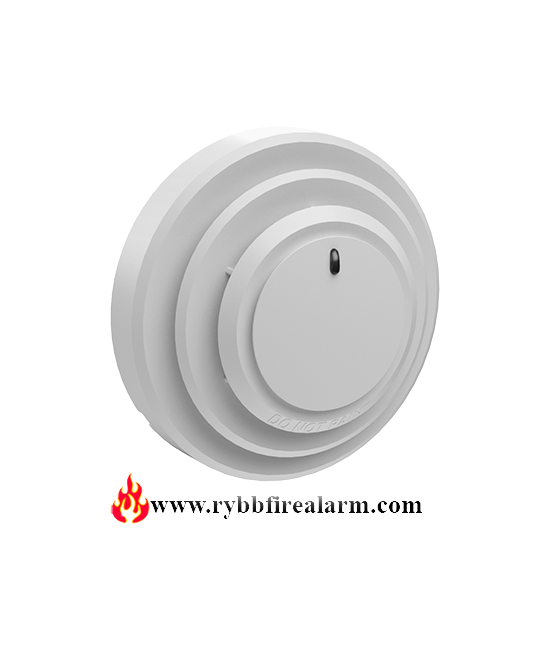

The Potter PAD300-PD is a commercial fire alarm smoke detector designed for compatible Potter fire alarm systems. Specifically, it provides dependable smoke detection for life-safety applications in commercial buildings. Unlike surveillance products, communications equipment, tracking devices, recording devices, or consumer electronic products, this detector is intended exclusively for commercial fire alarm installations.

Built for dependable performance, the PAD300-PD features a compact, low-profile design, selectable sensitivity settings, automatic drift compensation, and built-in maintenance monitoring. In addition, its durable off-white housing blends easily into commercial environments. Meanwhile, the integrated red LED provides clear visual status indication for quick system checks.

The detector works with compatible Potter fire alarm control equipment and PAD300 Series detector bases. However, always verify system compatibility before installation to ensure proper operation.

Product Functions

The Potter PAD300-PD supports commercial fire alarm systems by providing:

• Optical smoke detection
• Operation with compatible Potter fire alarm control equipment
• Selectable detector sensitivity
• Automatic drift compensation
• Built-in dirty detector monitoring
• Visible LED status indication
• Magnetic functional testing
• Simple DIP switch configuration

Features & Benefits

Commercial Fire Protection

The PAD300-PD is designed specifically for commercial fire alarm installations where dependable smoke detection is essential. As a result, it provides reliable performance in a wide range of commercial environments.

Selectable Sensitivity

The detector offers an adjustable sensitivity range from 1.1% to 3.5% per foot. Therefore, installers can configure the detector according to the specific requirements of each application.

Automatic Drift Compensation

Automatic drift compensation adjusts for gradual environmental changes, including normal dust accumulation. Consequently, the detector helps maintain consistent performance throughout its service life.

Built-In Dirty Detector Monitoring

Built-in diagnostics continuously monitor the detector’s operating condition. As a result, maintenance personnel receive an early indication when cleaning or inspection may be required.

Low-Profile Design

The compact housing measures less than two inches in height when installed on a compatible detector base. Furthermore, its off-white finish complements a variety of commercial interiors.

LED Status Indicator

The integrated red LED provides a clear visual indication of the detector’s operating status. Therefore, technicians can quickly verify detector activity during inspections and testing.

Simple DIP Switch Configuration

Rear-mounted DIP switches allow installers to configure the detector quickly without requiring specialized programming equipment. Consequently, installation becomes faster and more efficient.

Magnetic Functional Testing

The detector supports routine functional testing with a compatible magnetic test tool. In addition, the LED confirms detector operation during the testing process.

Technical Specifications

Manufacturer: Potter Electric Signal Company

Model: PAD300-PD

Product Type: Commercial Fire Alarm Smoke Detector

Detection Technology: Optical Smoke Detection

Configuration Method: DIP Switch

Sensitivity Range: 1.1%–3.5% per Foot

Operating Voltage: 15–32 VDC

Standby Current: Less than 250 µA

Alarm Current: Typically 5–7 mA

Status Indicator: Red LED

Housing Color: Off-White

Construction: Commercial Grade Plastic

Compatible Bases: PAD300 Series

Testing Method: Magnetic Test

Operating Temperature: 32°F to 100°F (0°C to 38°C)

Relative Humidity: Up to 93% Non-Condensing

Always verify all specifications using the manufacturer’s official documentation before installation.

Typical Applications

The Potter PAD300-PD is suitable for compatible commercial fire alarm systems installed in:

• Office Buildings
• Schools
• Universities
• Hospitals
• Healthcare Facilities
• Hotels
• Apartment Buildings
• Retail Stores
• Warehouses
• Government Buildings
• Industrial Facilities
• Commercial Properties

Before installation, verify that the application complies with local building codes and fire alarm system requirements. Additionally, always follow the manufacturer’s installation recommendations.

Compatibility

The Potter PAD300-PD works with compatible Potter fire alarm control equipment and PAD300 Series detector bases.

Before purchasing or installing this detector, verify compatibility with the intended fire alarm system. Doing so helps support proper installation and dependable system operation.
