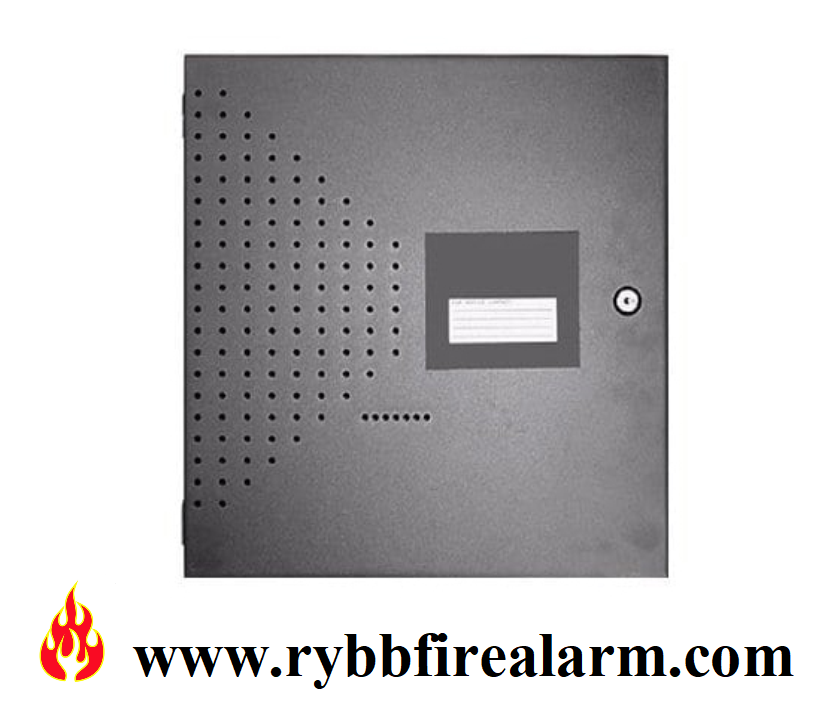

Notifier FCPS-24S6E Fire Alarm Power Supply, **230 Volt**

The Notifier FCPS-24S6E from Notifier Alarms is a compact, cost-effective, 6-amp remote NAC Extender power supply and battery charger. Also, it comes designed to extend the power capabilities of existing Notification Appliance Circuits (NAC’S) and support ADA requirements by offering NAC synchronization and auxiliary power to support 24-volt system accessories. It may be connected to any 12 or 24-volt Fire Alarm Control Panel (FACP) or it can be used for standalone applications.

The Notifier FCPS-24S6E provides regulated and filtered 24 VDC power to four notification appliance circuits configured as either four Class B (Style Y) or Class A (Style Z, with ZNAC-4 option module). Alternately, the four outputs may be configured as all non-resettable, all resettable, or two nonresettable and two resettable. The FCPS-24S6R also contains a battery charger capable of charging up to 18 AH batteries.

Use addressable control modules to activate the FCPS instead of activating it through the FACP notification appliance circuits. This typically allows for mounting the FCPS at greater distances* away from the FACP while expanding system architecture in various applications.

In general, use the FCPS to expand auxiliary regulated 24-volt system power up to 4.0 A. Both resettable and non-resettable power options are available. Resettable outputs come created by connecting the resettable output from the FACP to one or both of the FCPS inputs.

Features / Specifications

• Optional power-supervision relay
• Power-limiting technology meets UL power-limiting requirements
• Form-C normally-closed trouble relay
• Fully supervised power supply, battery, and NACs
• Selectable earth fault detection
• AC trouble report selectable for an immediate 2-hour delay
• Requires input trigger voltage of 9 – 32 VDC

Download the Specification sheet in *.pdf format
